How to Repair a Corrupted Pen Drive/SD Card for Free

Tracy King updated on Oct 31, 2019 to Storage Media Recovery | How-to Articles

Summary

In this article, we'll provide you with three effective methods to repair a corrupted pen drive without losing any data. You can try the free powerful pen drive repair software to get things done. EaseUS Data Recovery Wizard comes handy whenever you want to recover data from a corrupted pen drive, USB drive, or SD card.

What to Do When A Pen Drive or SD Card Gets Corrupted?

Are you looking for a way to repair a corrupted pen drive, SD card, or hard drive on your PC, camera or mobile phone? Not sure what to do when a storage device suddenly stops working, gets corrupted, or even becomes unrecognized by your PC?

Relax! Here are three doable things for you if you don't know what to do when you are faced with pen drive, USB or SD card corruption. These little tricks are easy to perform but powerful enough to resolve commonplace malfunctioning symptoms.

Tip 1. Try to connect your device to a nearby computer

If there is an idle computer near you, try it for at least once, especially it's about the USB device not recognized issue. This way helps exclude an unsuccessful connection problem.

Tip 2. Change the drive letter and path

A drive letter confliction may present you with a nondetectable device, too. You can access to Windows Disk Management (This PC/My Computer -> Manage -> Disk Management).

Try to assign a new drive letter to it. With a unique drive letter of itself, the connected drive should show up normally again.

change drive letter and path to repair corrupted pen drive

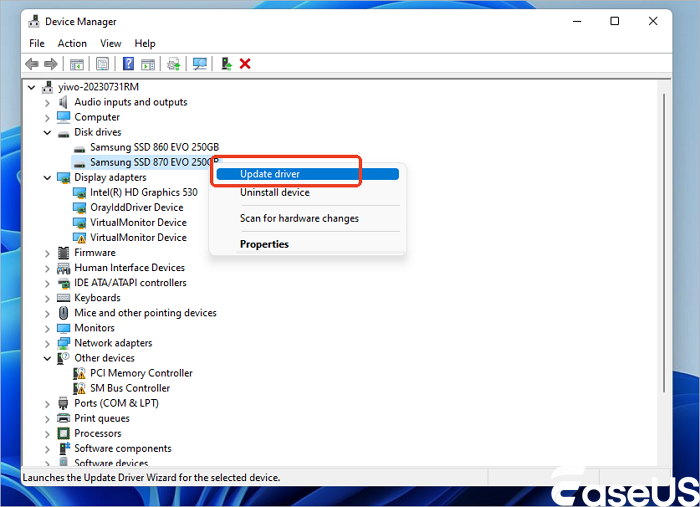

Tip 3. Update device driver

When you find no trace of the drive you've correctly connect in neither the Windows File Explorer nor Windows Disk Management, you might step further to Windows Device Manager (This PC/My Computer -> Manage -> Device Manager).

open device manager

Expand the Universal Serial Bus controllers and right-click on each Generic USB Hub to update the driver, until the device appears on the PC again.

update driver to fix a corrupted pen drive

If all these quick fixes don't work for you, don't worry. In the following paragraphs, you'll find three pen drive repair tools to repair a corrupted pen drive/SD card.

Top 3 Pen Drive Repair Software

When a pen drive, USB flash drive, or SD card gets corrupted, it won't be able to be detected by a computer and the data on it could become inaccessible. You'll notice that the pen drive or SD card will not respond to any operations. So, how to fix this problem and repair your pen drive or SD card? Here, you'll find three universally applied pen drive repair tools, together with a piece of data recovery software, in order to perform a complete pen drive/SD card recovery after corruption.

The recommended tools are working pretty much the same regarding the effectiveness, so choose the one that suits your needs the best.

No.1 Native Windows Check Disk Tool

Granted that there are logical errors with the USB pen drive, you can easily fix it by repairing the file structure. Windows has one great tool for you to initiate a check and repair.

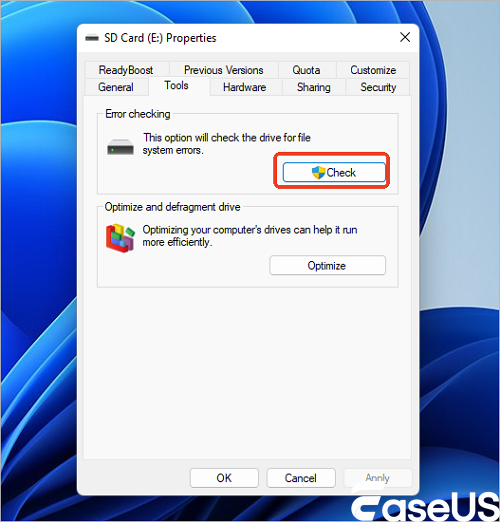

Step 1. Make sure that the problematic pen drive has connected to the computer. Open Windows File Explorer, right-click the removable disk and choose "Properties".

Step 2. Go to the "Tools" tab and then the "Check" button.

check bad sectors to fix corrupted pen drive

Step 3. Check both checkboxes in front you: [1] Automatically fix file system errors", and [2] Scan for and attempt recovery of bad sectors.

Step 4. Click "Start" and wait. Close the window after the scanning and repairing process ends.

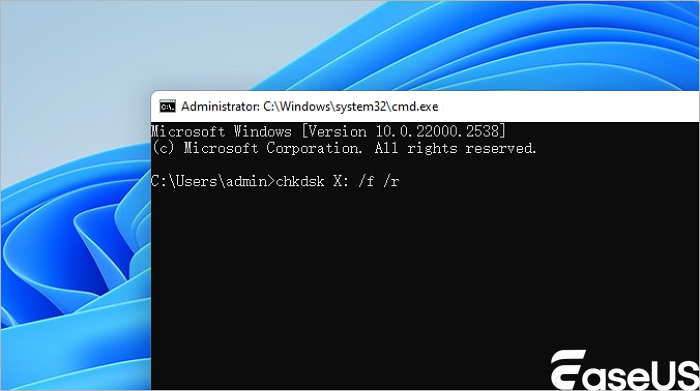

No.2 Windows Command Prompt - CHKDSK

The CHKDSK command is a highly effective method for you to repair a corrupted, damaged, and non-working USB flash drive, pen drive, SD card, or hard drive partition. It can also be applied to repair a corrupted external hard drive or HDD/SSD with ease.

Step 1. Connect the problematic storage device to your PC.

Step 2. Click on Start and type: cmd, hit Enter to open the Command Prompt.

Step 3. Type:  chkdsk /X /f G: or chkdsk G: /f and hit Enter. (G shall be the drive letter of your pen drive/sd card.)

Fix and repair corrupted pen drive/SD card.

Wait for the process to complete. Then you'll get your wanted healthy pen drive, USB, or SD card back.

No.3 Free Computer Fixing Tool from Third-party

If you don't have any technical know-how and want to minimize data risks, using third-party software could be a better choice. The Command line is suitable for computer professionals since wrong commands can cause severe problems. Therefore, we strongly recommend you to try an automatic command line alternative.

EaseUS Tools M is a practical computer fixing tool that is safe and light-weighted. It's a perfect alternative to CHKDSK command. Use this one-click tool to solve your computer issues.

To fix file system error or disk error:

Step 1: DOWNLOAD EaseUS Tools M for Free and install it.

Step 2: Open the software and select "File Fixing" on the left pane.

On the right pane, choose the drive and check off the box at the bottom - "Check and fix file system error". Then, click "Fix" to start repairing the error.

Step 3: Wait until the operation completes. Wait until the operation completes. After the operation completes, click the "View" button to check the drive.

select the drive and check off file system error

How to Recover Data from A Corrupted Pen Drive

Hopefully, most corruption problems resulted from logical errors have a data recovery solution. If you see the pen drive displaying error messages like "you need to format it before you can use it", "invalid file system RAW", "unallocated", etc., you can happily use a professional pen drive file recovery freeware to retrieve data from it, even it's inaccessible at the moment. If your files and data saved on the corrupted device are more than 2GB, you'll need to upgrade this free pen drive recovery software to the Pro version in order to restore unlimited data.

These steps show you how to get back lost files from pen drive. You can also apply the method for all Windows-compatible storage drives.

Step 1. Choose the pen drive to scan.

Connect your pen drive to your computer and then you can run EaseUS pen drive recovery software - Data Recovery Wizard on your PC. On the main interface, choose your pen drive which marks as a removable disk, and click "Scan" to start the pen drive recovery.

choose pen drive to scan

Step 2. Scan the pen drive.

Let the program run to scan and find all your lost files. After the scan is complete, you can quickly find the desired file type by using the features of "Filter" and "Search".

  • Filter: Filter a specific file type like Pictures, Documents, Videos, etc.
  • Search: e.g. File name/file extension.
scan pen drive data

Step 3. Recover pen drive files.

One locates the target files, you can double-click to preview them one by one. Finally, click "Recover" to save them to a secure location on your PC or another external storage device.

preview and recover pen drive data

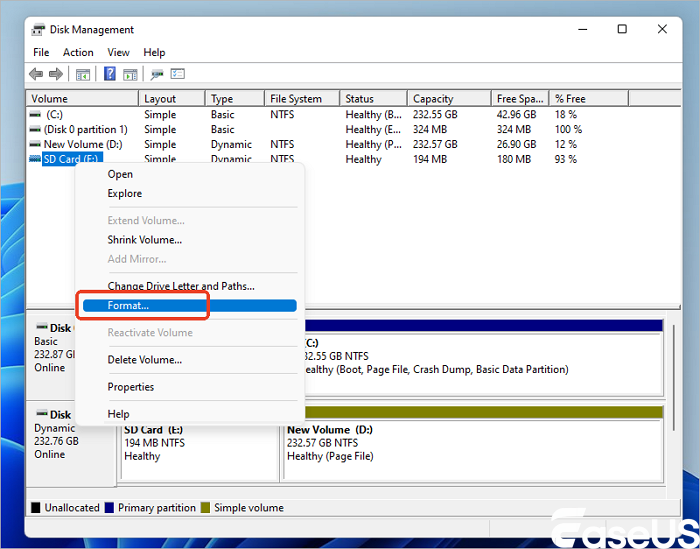

Additional Fix for A Corrupted Pen Drive - Format

After getting back important data from the corrupted storage device, you can now directly format it to repair the corrupted or damaged pen drive or SD card.

Step 1: Connect the pen drive/SD card to your PC.

Step 2: Right-click on This PC/My Computer and click on Manage.

Step 3: Click Disk Management.

Step 4: Right-click the corrupted or non-working pen drive/SD card and select Format.

Step 5: Reset the drive letter, file system, and other necessary settings for the pen drive or SD card.

Step 6: Click OK to finish the process.

format corrupted pen drive
