3 Ways to Combine or Merge Partitions in Windows Server 2022/2019/2016

Merging Partitions can be tricky at times because you will end up losing data. Today we will be learning about merging partitions in Windows Servers without any kind of data loss.

Free Download

100% Secure

  24/7 Tech Chat

Free Inquiry


Page Table of Contents

Updated by

Tracy King

Written by


Updated on Apr 22, 2024

How Do I Merge Partitions in Windows Server 2019/2016?

Many people have the same question whether they can merge partitions without losing any data loss. The answer is definitely yes. However, it's not that simple, and if you fail to do it correctly, you will lose data. Here we have explained three ways of merging the Windows Servers successfully. Here we have listed down the three methods to combine partition in Windows Server.

  1. 1. Merge Partitions with Partition Manager Software (No Data Loss).
  2. 2. Merge Partitions Using Disk Management.
  3. 3. Combine Partitions Using CMD.

Merging Partitions in Windows Servers always gets tricky, and with one mistake, you will lose all your data. The safest way to merge partitions is with the help of software. There are a few software available in the market, but not all of them are reliable. Today, we will be talking about reliable software that will help you merge servers without any data loss. You can always turn to EaseUS Partition Master to do the process without any hassle. It has been tested multiple times, and it has never lost any data during the merging process. EaseUS will give you an instant solution for combining volumes without any problem in just a matter of a few minutes.

Merge Partitions Using EaseUS Server Partition Manager Software

EaseUS Partition Master is an easy-to-use simple partition tool used to manage disk space in Windows. This software reduces the number of partitions in any hard drive without losing any data. The software can help you convert MBR to GPT, making Disk Ready for any Windows operating system. You will be able to migrate to a new SSD without any issues with the help of EaseUS. Partitions can be merged with the software even when the drives are not adjacent to each other. EaseUS allows Windows servers users to merge as many drives as they want irrespective of their position without losing data.

If you use the Windows Server, then EaseUS is a must-have software for you as it will help you solve multiple problems. The software is also quite flexible, making it quite useful. Here are some of the advanced features of EaseUS software.

  • One-Click to Adjust New Disk Layout - With the help of one click, you will be able to adjust the layout you desire with the software. The layout can be edited and changed multiple times and set according to the needs of the user.
  • Fix low disk space error in 1 click - If you are facing issues with space, then EaseUS will surely help make some available unused space which can be a quick fix a lot of times.
  • Clone or copy the disk/partition with simple clicks - This feature comes in handy when you are changing hard drives. It allows you to clone your old hard drive to the new hard drive. It is possible to even when you have an operating system installed on your hard drive.
  • Migrate the Server system to a new HDD/SSD without reinstallation.

Free Download

100% Secure

  24/7 Tech Chat

Free Inquiry

With this feature, you will be able to merge your server system. Follow the steps given below to merge partitions with EaseUS Partition Master.

Step 1: Select the target partition

Right-click on the partition which you want to add space to and keep, and select "Merge".

Run EaseUS partition manager software

Step 2: Select a neighbor partition to merge

Select one partition next to the former selected partition to merge.

Select partitions to merge

And click "OK" to continue.

Confirm merge partitions

Step 3: Execute operation to merge partitions

1. Click the "Execute Task" button at the top and then click "Apply".
2. The program will merge space and add files from the second partition to the first partition.

Select partitions to merge

Merge Partitions Using Disk Management

If you are looking to merge partitions using the Disk Management method, you might lose some data. Using this data is that you will have to delete the target partition first to create unallocated space. Disk Management merges partitions simply with the help of extending the source partition with unallocated space. If you are using this method, make sure to back up all your data before going through the process. You can manually copy all the data, which will take a lot of time, or use all the different free backup software available. Make sure to follow the steps carefully after completing the backup.

●Go to the Desktop and launch the Disk Management application.

●Next, you need to format the target partition so that some unallocated space is created for merging the partition. You can delete the target partition by simply right-clicking on the partition and choosing the format option.

Select partition to delete

●When the app is launched, simply go on the drive, you want to merge and right-click on it. In the drop-down, look for "Extend Volume" and click on it.

click extend volume

●This will launch the Extend Volume Wizard. Click on the "Next" button.

click next

●Now simply click on the drive you want to merge with formatted and click on "Next".

click on next

●Click on the "Finish" button to successfully execute the process.

click finish button

Combine Partitions Using CMD

Another way to merge partitions in Windows Server is with the help of the CMD application. With this application, you will not need any third party software to do so. If you are using this method, you will surely lose data, so keep a backup beforehand. This method is also required to delete one volume to be successfully able to merge. This app will merge one drive to an empty formatted drive, just like Disk Management. Here we have given all the steps of combining partitions using CMD.

●Click on Windows and R key simultaneously and type 'cmd', and press enter.

type cmd

●You will now see the MS-DOS application launched in front of you.

MS-DOS application

●Open the command line and then type "diskpart", and press enter.

type diskpart

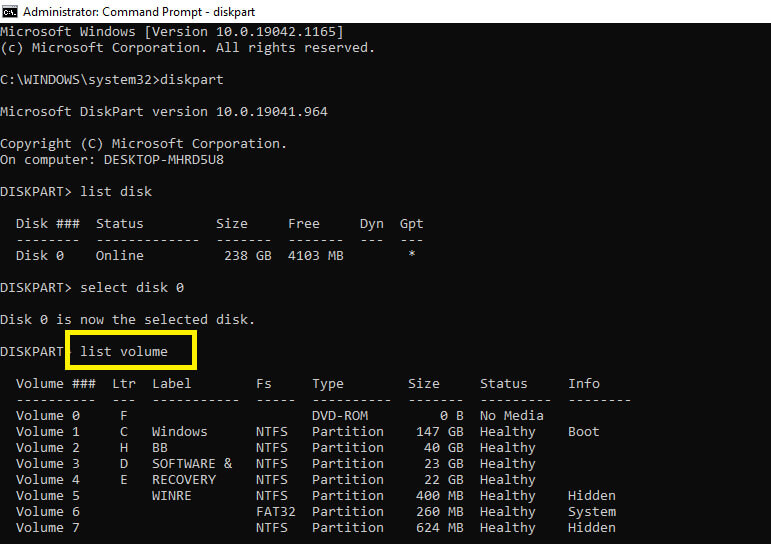

●Type in "list volume" to see all the existing volumes on the computer.

type list volume

●Type "select volume X" where X will be the drive letter you want to merge and press enter.

●Make sure to format the drive you want to merge with or else the extended command will not work. After opening "diakpart" You can select the drive with help of the command "select disk 2". The number 2 should be the number of the desired driver you want to format.

●Format the volume you want to format just by typing "delete volume" in the next line.

type delete volume

●Type "extend" and press enter.

●If you want to delete the partition you can just follow the steps of selecting the drive and just replace the "clean" command with "delete partition".


The three ways to merge partitions are safe, and you can use any one of them. Only one of the ways will help you retain all your data. If you need to merge partitions, then using EaseUS is recommended as it is one of the best ways to do so without losing any kind of data or partition. EaseUS Partition Master Enterprise is an all-in-one solution that will help you solve a lot of your problems. It is a perfect server computer disk management tool for merging partitions, extending, shrinking, splitting, and even resizing.
