How to Clone HDD to Solid-State Disk Without Reinstalling Windows

Jean updated on Nov 13, 2019 to Backup Utility | How-to Articles

SSDs (Solid-State Drives) perform much better than HDDs in many known aspects, like speed, reliability, and durability. That's why so many users, including you now, take it as a more suitable data storage or system installation option. With its increasingly known advantages and decreasing prices, SSDs become more and more popular.

Why Choose SSD over HDD

When you consider upgrading your hard drive, you can either migrate hard drive to a larger one or migrate from an HDD to SSD, depending on what the hard drive is used for. If your hard drive is for data storage, switching to a bigger HDD could be quite helpful to store much more content. However, if your hard drive is the system disk, upgrade it to an SSD is a more advisable choice for you can boost your computer performance to a great extent.

Advantages of SSD over HDD

Structurally speaking, an SSD is flash storage with no moving parts, while an HDD is magnetic storage with mechanical parts inside. That decides SSDs are much smaller than HDDs, both in size and capacity. Although SSDs have less capacity, there are multiple advantages of SSDs that will make you think the defect of size negligible based on the technology they use:

  • Faster reading and writing speed
  • Better performance and reliability
  • Stronger durability
  • More energy-saving and less noise-making
Tip
Given its pros and cons (like a smaller size, higher price, and easier to wear out), the optimal use of an SSD is to apply it as the system disk on your computer.

What Can You Benefit After Switching to SSD

More directly, with an SSD installed on your computer as the system disk:

  • You can boot your computer, open applications, and access files much faster
  • Your data stored on SSD are much safer
  • You will spend less money on electricity bills and enjoy a quiet working environment

Based on the information above, it's really a wise choice to clone your existing HDD to an SSD. Then here comes the question, how to clone an HDD to an SSD. As far as I know, there is no built-in tool in Windows that allows you to clone a hard drive to an SSD. Luckily, there is third-party software for you to finish the task.

How to Clone an HDD to an SSD

With the Windows backup software - EaseUS Todo Backup, you can effortlessly clone your hard disk, be it the system disk or data disk, to an SSD. Yet before you start, there are some preparations you need to make in order to have a smooth cloning process:

  • If there are files existing on your SSD, make sure you back it up (EaseUS Todo Backup can help) in advance before the disk clone. Cloning an HDD to the SSD will erase all the data on the target device.
  • Make sure the capacity of the SSD exceeds the used space on your HDD, or there will be boot issues or data loss after cloning the HDD to your SSD.
  • Make sure the partition style of the target disk is in accordance with the source disk. If not, you will need to convert from MBR to GPT or vice versa.

To check the partition style of the HDD and SSD:

Step 1. Connect the HDD/SSD to a computer.

Step 2. Right-click "This PC" and choose "Manage" > "Disk Management".

Step 3. Right-click on your disk and choose "Properties".

Step 4. Switch to the "Volumes" tab. Under Disk Information, you can see the partition style of your disk.

Check partition style of hard disk

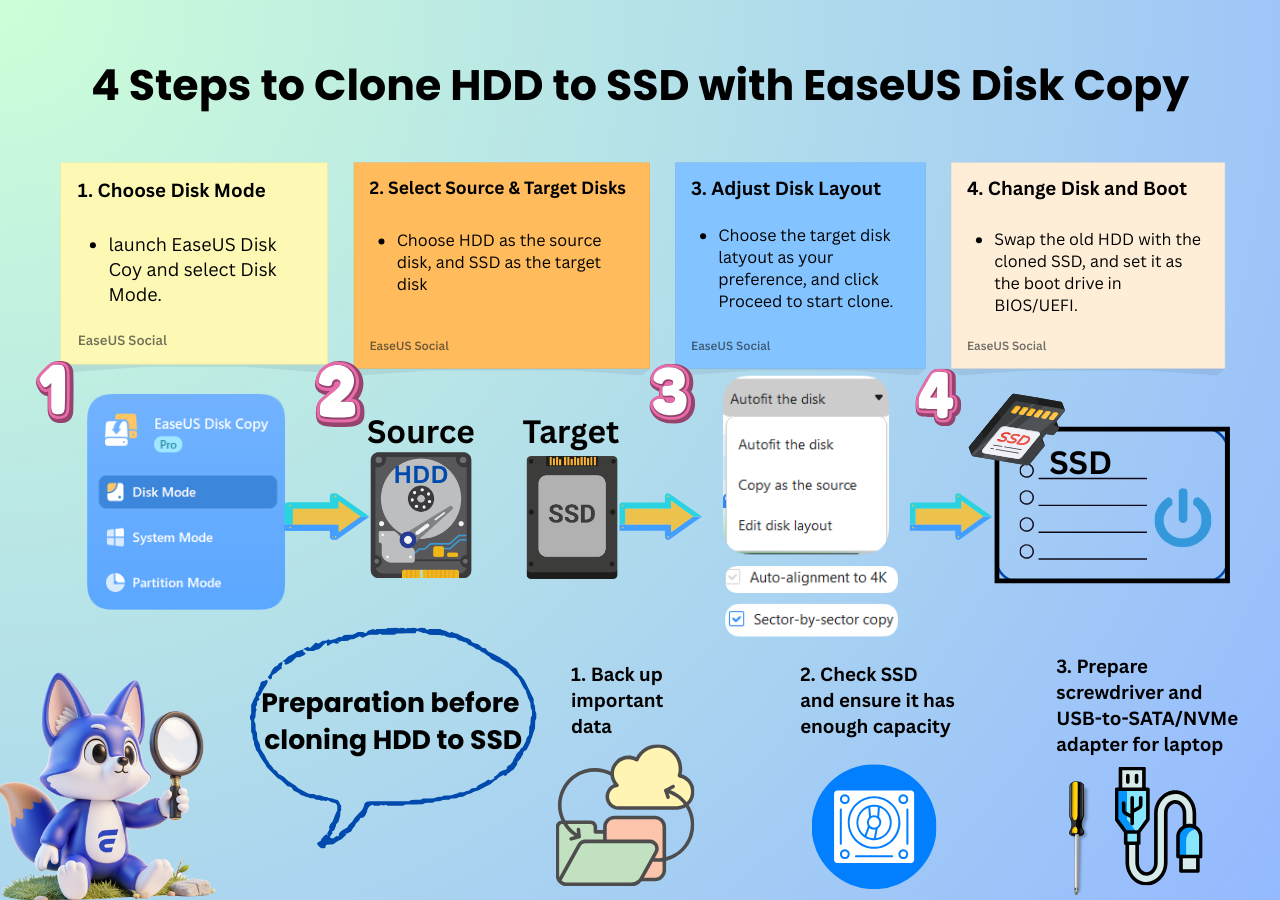

Meet all the requirements above? Now you can clone your HDD to an SSD following the guide below:

Step 1: Launch EaseUS Todo Backup and click "Clone".

click clone to clone system disk

Step 2: Select the source disk which contains the operating system.

select the system disk as the source disk to clone

Step 3: Choose the destination disk.

select a destination to save the disk image

Advanced options:

These advanced settings can help you clone a drive more stable and smoothly in some special case. However, without these advanced settings, EaseUS Todo backup can still give you an exact and intact clone.

Optimize for SSD - If the destination disk is an SSD, checking this option will ensure sector alignment in the process.

Sector by sector clone - A sector by sector clone ensures that the destination hard disk/partition is exactly the same as the source hard disk/partition. It will clone all the sectors if the option is checked, even if the sector is blank. As a result, the target will be equal in size to the disk being cloned after the process. This option is found in the same step where you choose the destination hard disk/partition both in the Disk clone and Partition clone wizard.

Create a Portable Windows USB drive - This option ensures that the cloned USB system disk is able to boot normally.

Step 4: Preview and save the changes and the software will start to clone your system disk.

preview the changes and start to clone system disk

You may have noticed that there is a system clone option in EaseUS Todo Backup, which enables you to clone your Windows from one disk to another. If the used space on your HDD is larger than the total size of your SSD, which is quite common, you can consider migrating OS to your SSD only. As long as your SSD is larger than the used space on your system and boot drive, you can clone the OS from your HDD to the SSD without any boot issues. As for the other partitions on the HDD, you can choose either to manually copy the files on them to another hard disk or use the partition clone feature in EaseUS Todo Backup to get things done.

Issues You May Encounter After Disk Cloning

Although many users can successfully clone an HDD to an SSD, there are always some expectations. Here we list some frequently asked questions and the corresponding solutions in case you need it.

Issue 1. Disk Boot Issues

The causes of disk boot issues are various. I'll show you three situations.

You can manually select the disk or partition to clone using the "Clone" feature in EaseUS Todo Backup. However, when you attempt to clone the Windows operating system from your HDD to the SSD by manual selection, you may select the C drive only. That will certainly cause boot issues if the system partition and boot partition are different partitions. (For your information, the boot partition is a primary partition that has the boot loader, which is used to boot the system. The system partition is a partition that contains the OS folder. Both are necessary for booting your computer.) If that's your case, you can contact our support team (support@todo-backup.com) for remote assistance. They will help you create the system partition, which will solve the boot issue.

When you try to clone an HDD to an SSD, you may connect the HDD to a computer and make the source disk a USB drive. In such a case, you will need to edit BCD (Boot Configuration Data, which helps to make the Windows system partition bootable) on the cloned SSD. For a detailed guide on how to edit BCD, you can refer to the official document from Microsoft.

Another culprit for disk boot issues after disk cloning is the lack of a necessary driver. Fortunately, you can use DSIM (Deployment Image Servicing and Management), a Windows built-in command-line tool, to add the driver. Also, you can refer to the official document from Microsoft for help.

If there is any situation you cannot handle after cloning your HDD to an SSD using EaseUS Todo Backup, feel free to contact our support team (support@todo-backup.com) for assistance.

Issue 2. Software Asks or Activation

The software installed on your system disk may ask for activation after you clone the HDD to SSD. Here you will need to contact the software producer. They will help you reactivate the software.

Issue 3. Get a Misaligned SSD After Cloning

It happens that your SSD is misaligned after the disk cloning. Misalignment will reduce the performance of your SSD. Thus, if you find your SSD is misaligned, you can use the 4K alignment feature in the free partition manager - EaseUS Partition Master to align sectors on your SSD. You can check the alignment of your SSD following the steps below:

Step 1. Press "Windows + R" and enter msinfor32.

Step 2. Go to "Components" > "Storage" > "Disks".

Step 3. Check the value of "Partition Starting Offset". If the value is not divisible by 4096, your SSD is misaligned.

The Bottom Line

To minimize the possible issues, I recommend you follow the guidelines strictly to clone an HDD to an SSD. If you do have encountered unexpected issues you cannot fix after using EaseUS Todo Backup, contact our support team is welcomed.
