A solid-state drive (SSD) is a storage device using integrated circuits to store data persistently. SSDs rely on non-volatile memory, usually NAND flash, to save data in memory cells. There are different types of SSDs because of the different interfaces. Can you distinguish them? The interface used to connect SSD to a computer significantly impacts performance and compatibility. EaseUS software will explain the SSD interface. Now, let us know in detail about different SSD interface types.

Modern SSD Interfaces

The interfaces below can be found on SSD drives of today's personal desktops, laptops, DAS, and NAS appliances, as well as other mainstream products. Some are only employed in advanced enterprise-level servers, workstations, and storage arrays.

## SATA (Serial ATA)

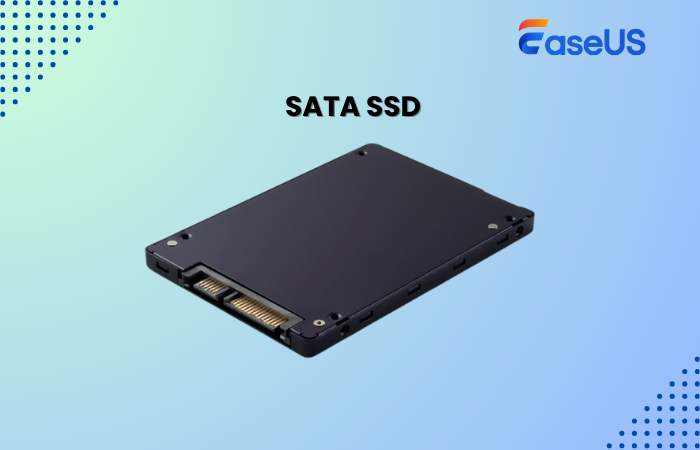

SATA, a successor to the older Parallel ATA standard, is a widely used interface for connecting storage devices to a PC's motherboard. It provides several advantages in terms of data transfer efficiency and reliability.

sata-ssd

Characteristics:

  • Reliability and Error Correction: It uses advanced error correction capabilities, which allow for checking transmission instructions and automatically correcting errors during data transfer, improving the reliability of data transmission.
  • Hot Swapping: SATA supports hot swapping, meaning devices can be connected or disconnected while the system is on without causing damage or data loss.
  • Backward Compatibility: It supports backward compatibility with older ATA standards.
Compatibility Maximum Speed Latency Ideal Use Cases
- Widely supported across most motherboards and devices.
- Works with both SSDs and traditional hard drives.





SATA III offers up to 6 Gbps (600 MB/s).





Higher latency compared to PCIe and NVMe due to its older technology.





Suitable for general computing tasks and as an upgrade for older systems.

Advantages:

- Cost-effective and widely available.
- Easy to install and configure.

Disadvantages:

- Limited speed compared to newer interfaces like PCIe and NVMe.
- Performance bottlenecks in high-demand apps.

## PCIe (Peripheral Component Interconnect Express)

PCIe utilizes the most popular point-to-point serial connection method to connect to a PC's motherboard. This allows for significantly faster data transfer than traditional SATA SSDs.

pcie-ssd

Characteristics:

  • Speed: PCIe SSDs adopt multiple lanes for data transfer, making speeds exceed 5,000 MB/s for read and write operations.
  • Form Factor: PCIe SSDs usually come in the M.2 form factor, smaller but more efficient than traditional SSDs connected via SATA cables.
  • NVMe Protocol: Many PCIe SSDs utilize the NVMe protocol, which is optimal for flash memory and allows for better performance by supporting multiple simultaneous commands and reducing latency.
Compatibility Maximum Speed Latency Ideal Use Cases
- A computer's motherboard compatible with PCIe slots is required. PCIe 3.0 provides speeds up to 32Gbps (4GB/s), while PCIe 4.0 can reach 64Gbps (8GB/s). Lower latency due to direct communication with the CPU. Best for video editing, gaming, and other performance-intensive programs.

Advantages:

- Significantly faster than SATA.
- Supports multiple lanes for increased bandwidth.

Disadvantages:

- More expensive than SATA options.
- Compatibility issues with older systems lacking PCIe slots.

## NVMe (Non-Volatile Memory Express)

NVMe is a cutting-edge interface designed for SSD drives. It uses parallelism in SSDs, offering significantly lower latency and higher throughput than AHCI and optimizing the performance of solid-state storage by reducing latency and using the full potential of flash memory technology.

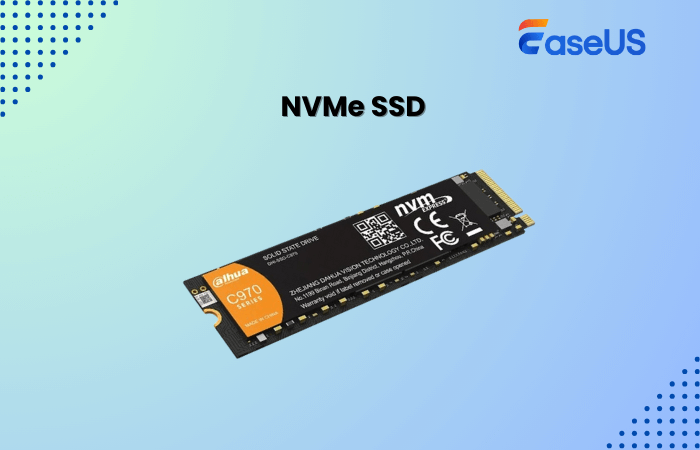

nvme-ssd

Characteristics:

  • High Performance: NVMe SSDs have data transfer speeds significantly higher than their SATA counterparts. NVMe SSDs use multiple lanes for data transfer, up to 4 lanes per device, with potential speeds of up to 32Gbps or more.
  • Power Efficiency: NVMe SSDs have advanced power management characteristics that allow them to change to low-power states when idle, enhancing battery life.
  • Scalability: As data storage demands increase, NVMe SSDs support scalability by connecting multiple drives without bottlenecking performance.
Compatibility Maximum Speed Latency Ideal Use Cases
- Utilizes the PCIe interface; requires support from the motherboard and OS. NVMe SSDs can achieve speeds exceeding 14,000 MB/s. Very low latency compared to SATA and traditional interfaces. Ideal for high-performance computing environments such as data centers or workstations running demanding applications.

Advantages:

- Extremely low latency and high input/output operations per second (IOPS).
- Optimized for parallel processing of data.

Disadvantages:

- Higher cost compared to SATA SSDs.
- Specific drivers or firmware updates are required for optimal performance.

## U.2

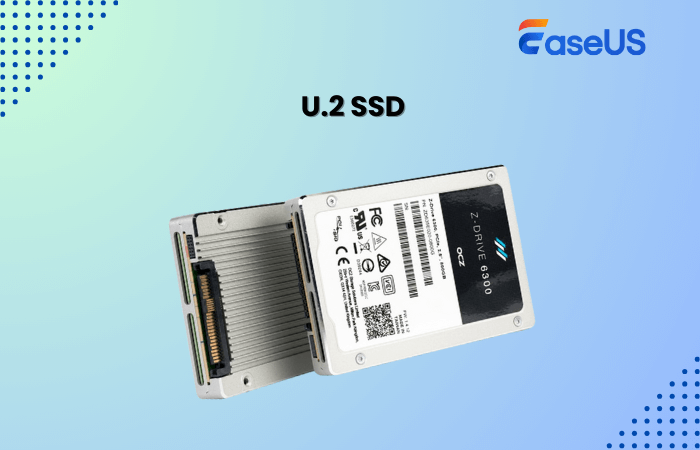

U.2 is an interface specifically designed for connecting SSDs to computers, primarily in enterprise environments. It uses the SFF-8639 connector and is pronounced "u-dot-2." This interface allows SSDs to communicate over the PCIe bus, supporting both PCIe and legacy SATA/SAS drives.

u2-ssd

Characteristics:

  • Form Factor: U.2 drives typically follow the 2.5-inch form factor, making them larger than the M.2 SSD drives. This larger size allows U.2 SSDs to have higher storage capacities, often exceeding 4TB, with some models reaching up to 30.72TB.
  • Hot-Swappable: U.2 SSD drives can be replaced without shutting down the system, which is very important for enterprise applications where uptime is critical.
  • Power Supply: U.2 SSD supports various voltage levels (3.3V, 5V, and 12V), unlike M.2 SSD, which only supports 3.3V.
Compatibility Maximum Speed Latency Ideal Use Cases
- Typically used in server environments; requires U.2-compatible motherboards. Similar to PCIe speeds, it can exceed 32 Gbps, depending on the configuration. Comparable to NVMe due to its reliance on PCIe protocols. Best suited for enterprise storage solutions where reliability and speed are critical.

Advantages:

- Hot-swappable capabilities allow for easier maintenance.
- Designed for enterprise applications with robust performance needs.

Disadvantages:

- Less common in consumer devices.
- Higher cost associated with enterprise-grade components.

## mSATA (mini-SATA)

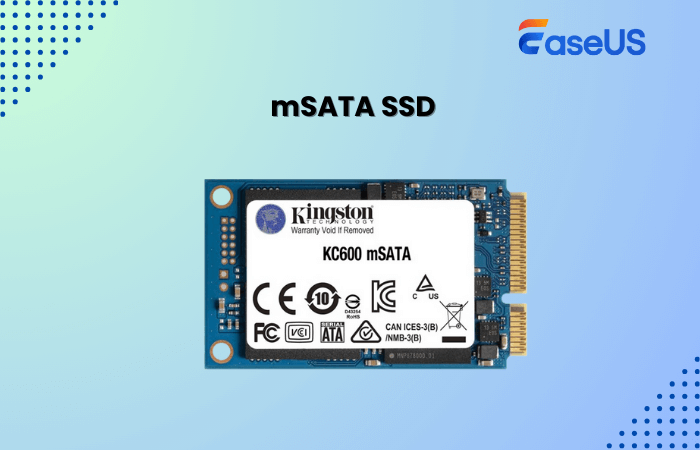

mSATA, introduced in 2011, emerges as a compact version of the SATA interface for SSDs in mobile and space-limited devices. It adopts a smaller form factor than traditional 2.5'' SATA SSDs, ideal for ultrabooks, netbooks, and some other portable devices.

msata-ssd

Characteristics:

  • Form Factor: mSATA SSDs are about the size of a business card and greatly smaller than SATA SSDs, allowing them to fit into devices with limited internal space.
  • Durability: mSATA SSD drives don't have any moving parts, more reliable and resistant to physical shocks.
  • Energy Efficiency: These SSDs consume less power than traditional HDDs, contributing to longer device battery life.
Compatibility Maximum Speed Latency Ideal Use Cases
- Compatible with devices that support mSATA slots but less common in modern systems compared to M.2. Limited to SATA III speeds (up to 6 Gbps). Higher than NVMe but lower than traditional HDDs. Used in older laptops or embedded systems where space is a premium.

Advantages:

- Compact size ideal for space-constrained devices.

Disadvantages:

- Slower than newer interfaces like M.2 NVMe.

## M.2

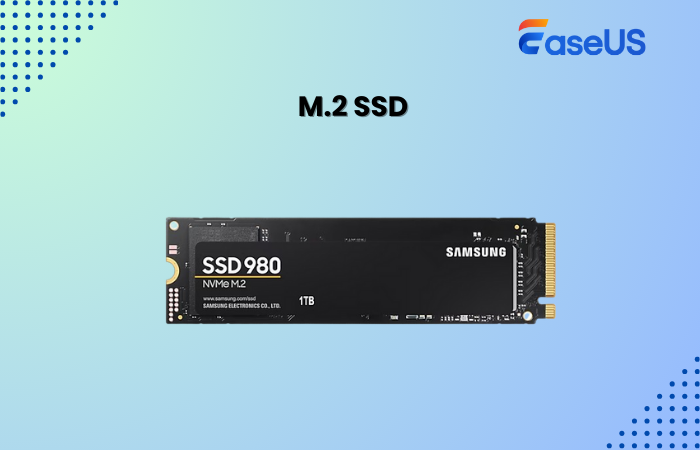

M.2 is a modern interface primarily used for SSDs in computers. Introduced in 2012 as a successor to the mSATA standard, it is designed to offer a more flexible and compact solution for storage in devices, including ultrabooks and tablets.

m2-ssd

Characteristics:

  • Interface Options: M.2 supports multiple interfaces such as PCIe, SATA, and USB.
  • Performance: M.2 SSDs are particularly notable for their performance advantages over SATA ones due to their ability to handle multiple I/O operations simultaneously, leading to significantly reduced latency and increased throughput.
  • Compatibility and Keying: M.2 connectors have various keying notches that prevent incompatible modules from being inserted into the wrong slots. The most common keys are B and M, which indicate different PCIe lanes and SATA support capabilities.
Compatibility Maximum Speed Latency Ideal Use Cases
- Requires an M.2 slot on the motherboard; compatibility must be checked with either SATA or PCIe protocols. Can achieve speeds up to 14,500 MB/s when using NVMe. Higher than NVMe but lower than traditional HDDs. Used in older laptops or embedded systems where space is a premium.

Advantages:

- Compact design suitable for modern laptops and desktops.

Disadvantages:

- Complexity in choosing the correct type based on protocol compatibility.

## USB

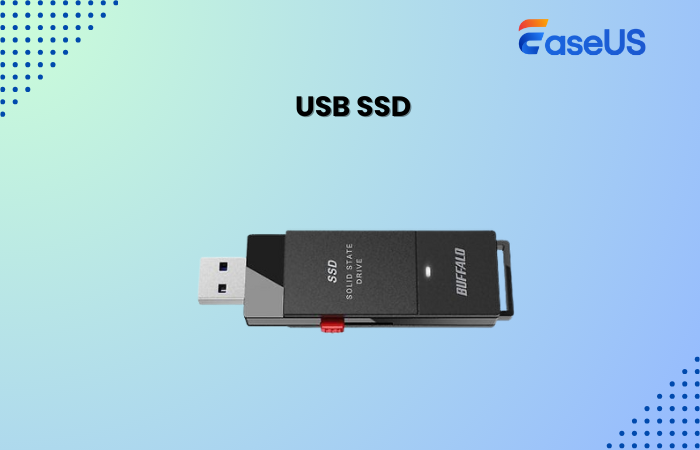

USB interface SSDs, a universal interface commonly used for external SSDs, are SSD drives connected to computers and other devices via USB ports. They can be either external or portable, allowing for easy data transfer and storage across multiple devices. Compared with the traditional USB hard disk drive, this type of USB SSD drive has a huge advantage in terms of transmission rate.

usb-ssd

Characteristics:

  • Connectivity: USB SSDs enjoy various USB interface standards, including USB 3.0, USB 3.1, and USB 3.2, with USB-C being a common type.
  • Compatibility: USB SSDs are compatible with different operating systems and devices, including Windows PCs and Macs, thus making them versatile and easy for accessing data across different platforms.
  • Form Factor: These USB SSD drives come in different form factors, typically housed in durable enclosures that protect the internal SSD components.
Compatibility Maximum Speed Latency Ideal Use Cases
- Compatible with almost all devices that support USB ports. USB 3.2 can provide up to 20 Gbps; USB4 can exceed this significantly. Higher latency compared to internal SSD interfaces due to external connections. Suitable for data transfer between devices or external storage solutions.

Advantages:

- Portability and ease of use; plug-and-play functionality.

Disadvantages:

- Slower than internal interfaces like PCIe or NVMe when used externally.

Share this post on social media to help others distinguish between SSD interface types!



Outdated SSD Interfaces

## Parallel ATA (PATA)

Parallel ATA, or Parallel Advanced Technology Attachment, is a legacy interface for connecting storage devices such as HDDs, SSDs, and optical drives within computers. PATA was first introduced in the late 1980s and became widely used until the early 2000s.

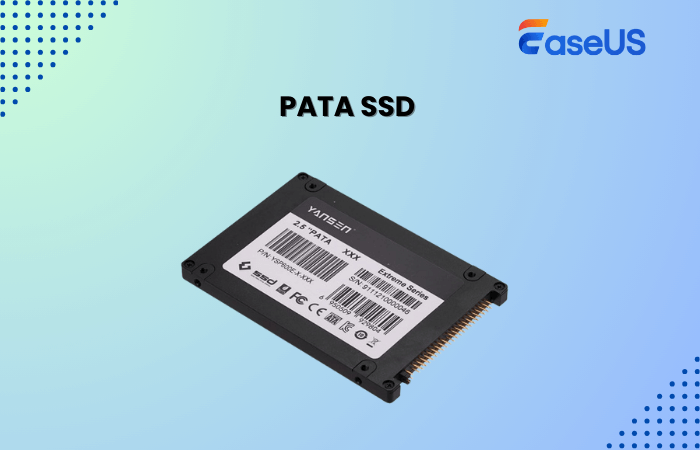

pata-ssd

Characteristics:

  • Data Transfer Method: PATA adopts a parallel signaling method, transmitting multiple bits of data simultaneously across multiple channels.
  • Cabling: PATA uses ribbon cables that typically have 40 or 80 pins. However, PATA's cable length is about 18 inches, which restricts its use primarily to internal connections within computer systems.
  • Device Support: PATA supports connecting up to two devices per cable, traditionally designated as "master" and "slave" devices.
Compatibility Maximum Speed Latency Ideal Use Cases

- Older systems that do not support SATA;

- Largely obsolete today

Maximum speed of up to 133 MB/s. Higher latency due to slower data transfer rates than newer standards. Rarely used today but may still be found in legacy systems requiring upgrades.

Advantages:

- Backward compatibility with older hardware.

Disadvantages:

- Significantly slower than modern interfaces; limited availability.

## SCSI (Small Computer System Interface)

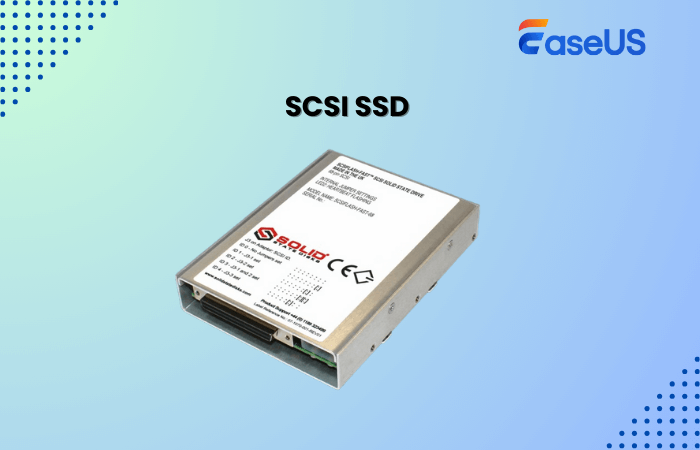

SCSI is a set of interface standards that facilitates communication between computers and peripheral devices. Initially developed in the 1980s, SCSI has evolved significantly, with various iterations, including Parallel SCSI and Serial Attached SCSI (SAS), which offer enhanced data transfer speeds and connectivity options for multiple devices on a single bus.

scsi-ssd

Characteristics:

Data Transfer Speeds: Modern SCSI interfaces, particularly SAS, can achieve higher data transfer rates than older standards.
Multi-device Connectivity: SCSI supports connecting multiple devices through a single interface, simplifying cabling, and enhancing system organization.
Hybrid Solutions: The combination of SCSI technology with SSDs has led to hybrid storage solutions that make use of the speed of SSDs for frequently accessed data while relying on traditional HDDs for larger storage needs.

Compatibility Maximum Speed Latency Ideal Use Cases

- Primarily used in servers and high-end workstations;

- Requires SCSI controllers.

Speeds vary widely depending on the SCSI version; Ultra320 SCSI provides up to 320 MB/s. Generally higher than modern SSD interfaces due to protocol overhead. Best suited for enterprise environments requiring reliable connections among multiple drives.

Advantages:

- Supports multiple devices on a single bus; robust error handling features.

Disadvantages:

- More complex setup compared to simpler interfaces like SATA.

Vendor-specific SSD Interfaces

SSDs used in Apple devices since 2010 usually have proprietary connectors and form factors that differ from those other manufacturers provide. They may resemble some of the above-described standards but still have different pin arrangements, varying from one model to another.

vender-specific-ssd

Conclusion

In conclusion, selecting the right SSD interface depends on specific needs regarding speed, compatibility, cost, and intended use cases. Each interface has its strengths and weaknesses that cater to different segments of users. You can choose one SSD interface that fits your needs. After choosing the right SSD, you can use EaseUS Disk Copy to help you clone or upgrade your SSD.
