Run our programs from a boot CD-ROM

What is the Windows PE

Microsoft Windows Pre-installation Environment (Windows PE) is a powerful replacement for the Microsoft MS-DOS operating system in your deployment processes, test and diagnostic tool development, and system recovery processes. Windows PE is a minimal Windows system that provides limited services based on the Windows XP Professional and the Windows Server 2003 kernels. It also provides the minimal set of features required to run Windows Setup, access and install operating systems from the network, script basic repetitive tasks, and validate hardware.

The WinPE does not require a hard drive to boot; it can run solely from a CD drive using the memory for dynamic data. This feature makes the WinPE appealing for data recovery and system maintenance purposes.

Your IT professionals can use the Windows PE with both desktops and servers to work faster and smarter. The Windows PE helps the IT professionals in your organization be able to deploy and support Windows desktops and servers in the following ways:

1. Automation. The deployment process becomes more streamlined because your administrators are able to automate the process by using the Windows PE platform and toolsets.
2. Toolsets. The maintenance and troubleshooting tools are far more powerful in the Windows PE than in the MS-DOS. The Windows PE is able to run multiple tools at the same time using the built-in multithreading and multitasking support. This capability saves both time and resources that would otherwise be required to validate and test the hardware and software images.
3. Deployment. IT Professionals no longer have to spend time building and maintaining the MS-DOS-bootable disks for deployment preparation. Windows PE provides the ability to boot from a variety of media types, including USB Flash Drive (UFD), DVD, CD, and the network, using the PXE remote-boot ROMs and Remote Install servers.

Using the Windows PE will make your IT professionals' deployment and recovery efforts less time-consuming and more productive.

Windows PE can support the multithreading and multitasking so that you can run multi-tools. This function is designed for saving the time of testing hardware and mirroring the software. It also can run the bath files/Microsoft Visual Basic Scripting Edition (VBScript) script/ Windows Host script/ HTML application/ Microsoft Active X object. The Windows PE provides a temporary space based on the RAM. Hence, the Windows PE can run the applications which must write the temporary files from RAM to the hard disk (even there is an unusable hard disk).

Windows Pre-installation Environment supports the Windows Vista, Windows XP, Windows 2003, Windows 2008 and Windows 7.

However, in the market, there isn't the Windows Pre-installation Environment for sale. You can use software named BartPE to produce the WinPE.

How to use BartPE to produce the WinPE

The BartPE didn't contain any record of the WinPE or the Windows XP. If you want to run the BartPE to produce the WinPE, you need to execute the original installation CD of Windows Xp. Hence, the BartPE didn't infract the copyright of Microsoft. The BartPE is just use the installation CD of Window XP and Windows Server 2003 to complete the Pre-installation environment.

The user can download the BartPE at the website. And then just need follow the instruction step by step. You can also create a rescue CD of BartPE. This CD will give you a great help when your Windows XP/2003/Vista/2008/ Windows 7 crashed.

The BartPE gives the entire Win32 environment to the user. Hence, you can use the CD to do the job in network. You can see the graphical interfaces and do various jobs of FAT/NTFS/CDFS without installing the operating system in the hard disk.

Further more, we believe you don't need the DOS bootable floppy any more if you have the BartPE CD.

How to let the Data Recovery Wizard boot from CD via using the BartPE

Here is a step by step instruction of creating a bootable CD of Data Recovery Wizard via using BartPE:

1. Please Install PE Builder in the local computer. ( Download PE Builder )
2. Please download and install the Demo version or full version of Data Recovery Wizard.
3. You should download the BartPE plugin by the link below firstly. Please do not decompress this file.
   1. Plugin for Data Recovery Wizard: drw.cab
   2. Plugin for Partition Table Doctor: ptd.cab
4. Run PE Builder.

5. Press the "..." button in the "Source" which you will see in the main interface of BartPE. And then please select the directory where you stored the Windows installation files. If you just have an ISO installation file, please decompress it to a folder.

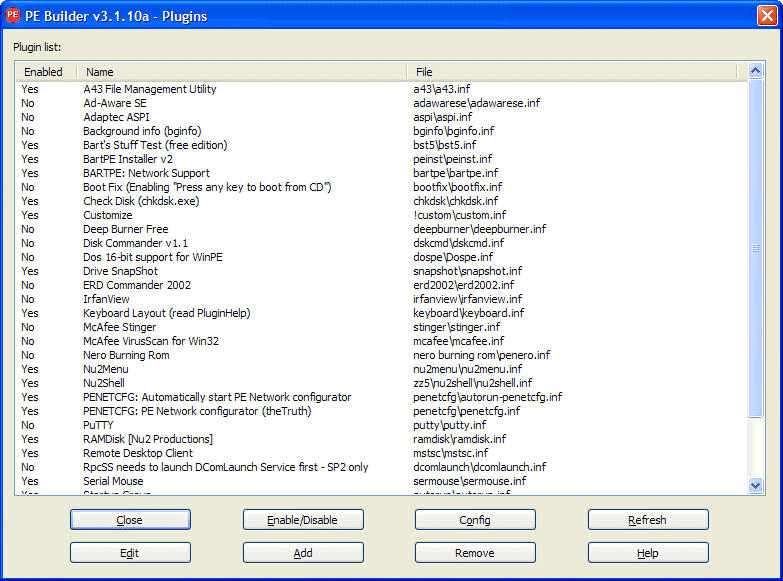

6. Please click the "Plugins" button.

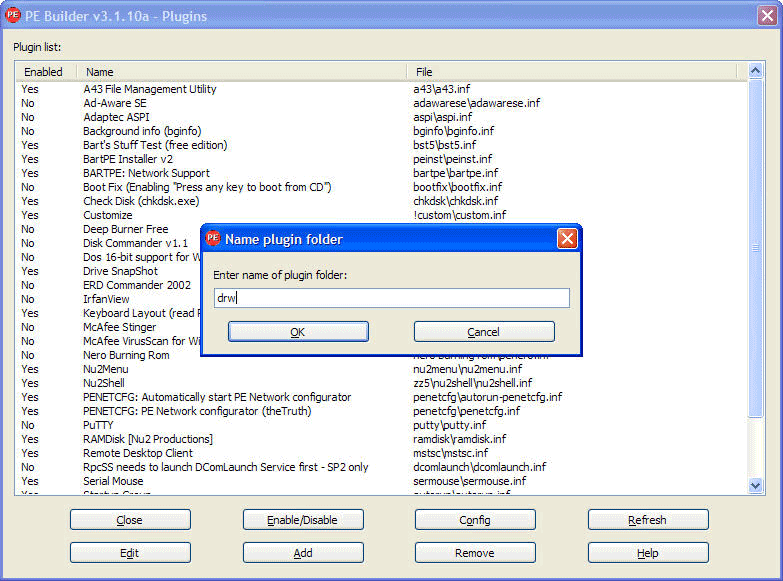

7. In the pop-up interface, please click "Add" button

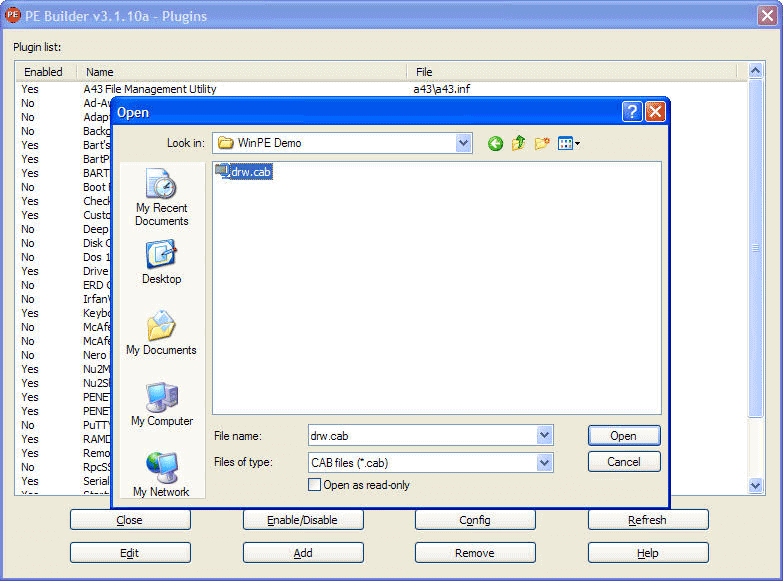

8. Choose the drw.cab which you downloaded. And then press "Open" button.



9. Please find the folder 'plugin' > 'drw' in the PE Builder installation directory. And then, please enter the drw directory.
10. Please copy the entire files in the installation directory of EASEUS Data Recovery Wizard to the drw directory of PE Builder. The path is: the installation directory of PE Builder\plugin\drw\files.

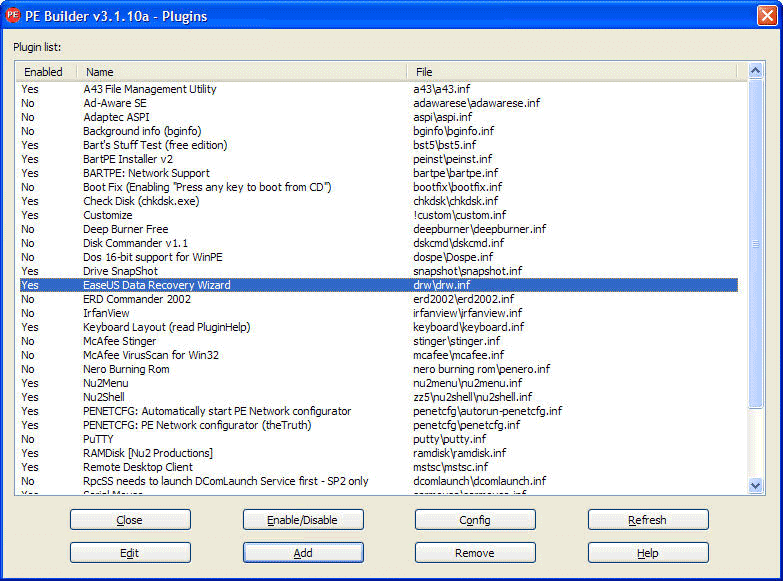

11. Please close the "Plugins" window.

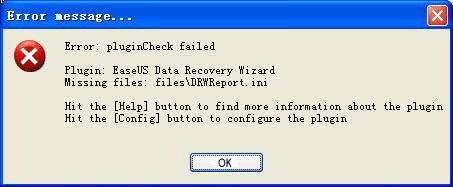

    If an error message pops up, that is:


    Please check whether your product is the newest version, if it isn't, please upgrade to Data Recovery Wizard. After you installed the new version, please redo from step 8.

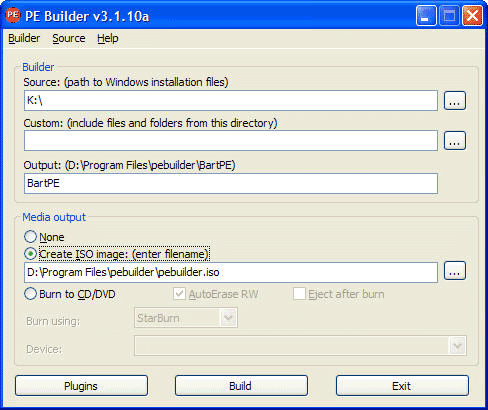

12. Please select the Create ISO image option in Media output which you will see in the main interface. Please click the "..." button, choose a directory which you will store the output files of ISO.

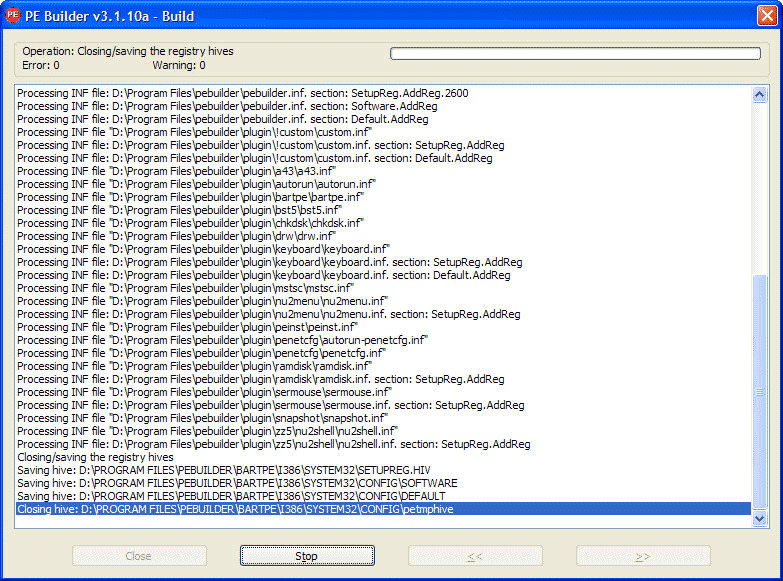

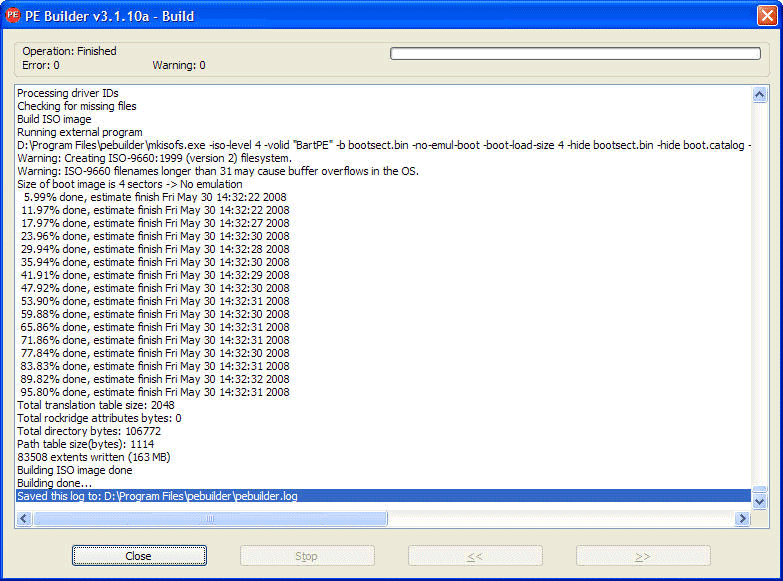

13. At last, you will return the main interface. At this moment, please click the "Build" button. After a few minutes later, the software will prompt you that the process has been completed.

14. Please burn the ISO file which just was created to CD, then you create a Data Recovery Wizard bootable CD successfully.


• PE Builder is copyrighted by Bart Lagerweij.
• Windows XP and WinPE are copyrighted by Microsoft.
• Data Recovery Wizard, Partition Table Doctor are copyrighted by CHENGDU YIWO Tech Development Co., Ltd.
