5 Methods | How to Fix OBS Dropped Frames in 2022

Crystal Chen Updated on Mar 11, 2022| min read

OBS is an open source screen recorder used on operating systems like Windows, Mac, and Linux. In most situations, OBS is perfect for streaming and recording. However, some users will complain about OBS dropped frames. When you encounter this problem, you will be very distressed, as it will affect you in many aspects.

There're 5 methods to fix OBS dropping frames like lowering the bitrate, optimizing network connection, etc. This post explains them fully. Meanwhile, an OBS alternative is introduced to help you record streaming video.

What Does OBS Dropped Frame Mean?

It is usually about the network connection issue. If the network connection is in a bad situation, then OBS is dropping frames. Some other cases will lead to dropped frames. For example, if the connection to the remote service is unstable, it will cause OBS to drop frames. Also, if the bitrate is not suitable, it will happen as well. Next, if the network is under a large number of uploading files, the dropped frame will also arise.

So, how to solve the problem that OBS is getting dropped frames? The most important thing is to adjust the bitrate to a suitable level. Below is the guide to help you learn efficient methods for fixing the dropped frames. Also, in most cases, OBS itself is less possible to lead to the issue.

Best 5 Methods to Fix OBS Dropped Frames

There're 5 ways to fix dropped frames in OBS, including changing the bitrate, optimizing the network, etc.

1. Lower the Bitrate in OBS

An unsuitable bitrate when streaming is one cause of OBS dropped frames. The lower bitrate you use, the less possibility you will face the issue. If the upload bandwidth does not match the bitrate, the OBS will not keep the qualified bitrate. Therefore, you can choose to reduce the level of bitrate.

There are generally three steps to adjust the bitrate. First, find the Setting. Then, change the bitrate to a suitable level. Finally, you can make it change to manage congestion.

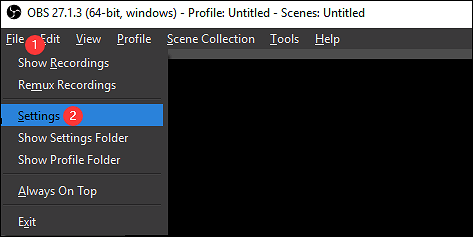

Step 1. To edit the bitrate in OBS, you need to click "File" > "Settings" in the main interface of OBS.

bitrate change in obs

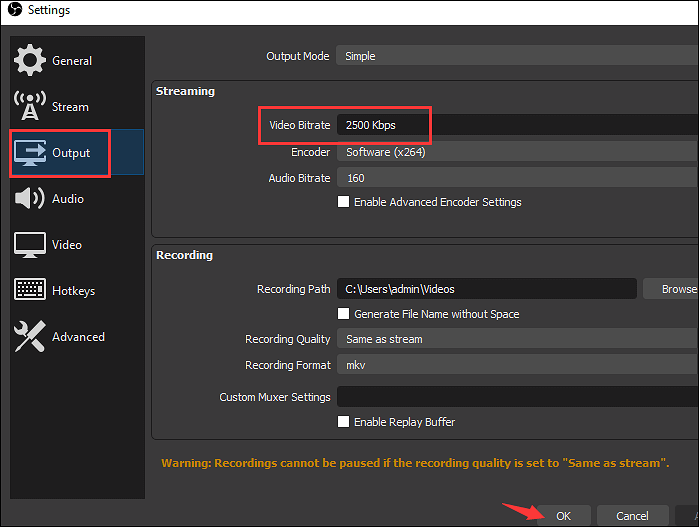

Step 2. After opening the Settings, you will see a window. Then, from the left side, click the "Output" option. After that, you need to find the Video Bitrate in the "Streaming" option. Use the scroll-down option to change the level.

change video bitrate in obs

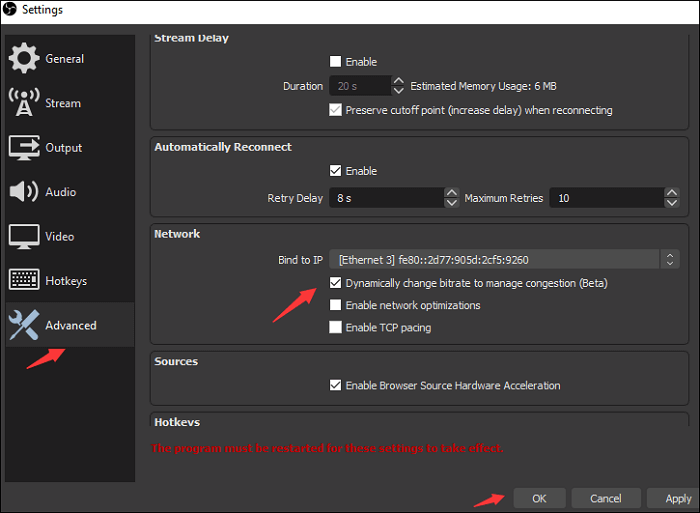

Step 3. Also, if you want to optimize the setting for bitrate, click "Advanced" > "Network". Then, enable the option named "Dynamically change the bitrate to manage congestion (Beta)". This option will offer a better experience when streaming. It won't fix the bitrate if other factors are changing.

enable network in obs

2. Enable Network Optimizations

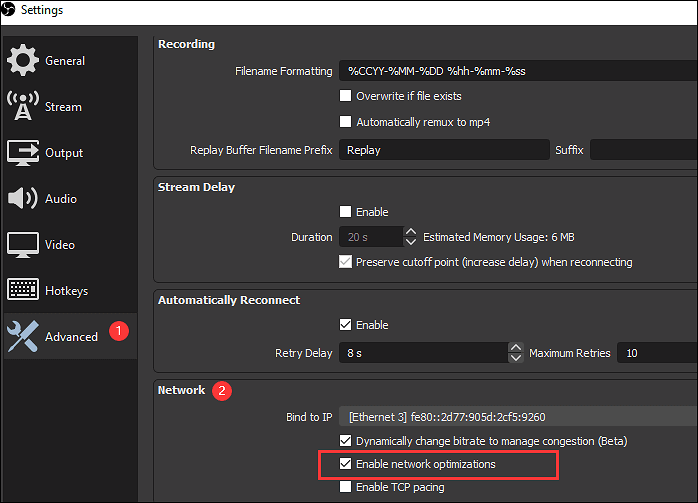

As it is mentioned before, OBS dropped frames are likely caused by an unstable network. OBS is providing the solution to optimize the network. The method is to optimize the option in order to maintain a good network status. Thus, to choose this option, you need to click "Settings" > "Advanced" > "Enable network optimizations".

enable network optimization in obs

3. Set Bind to IP

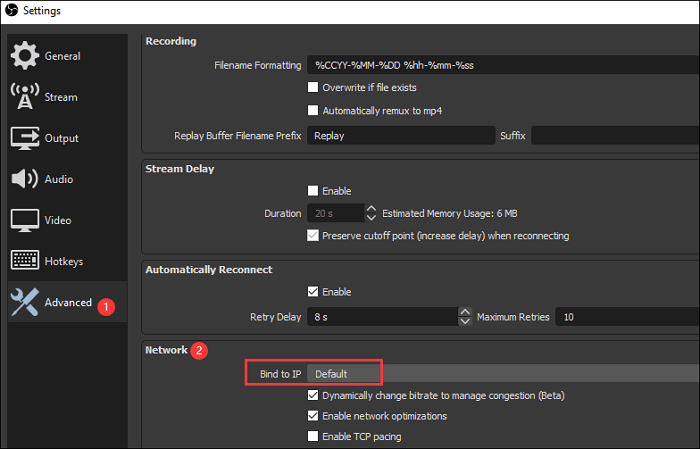

To solve dropped frames in OBS, the network is what you should focus on. In OBS, there are other options to change it. The Bind to IP should be altered to default. If you want to alter the network setting in OBS, you can hit "Advanced" > "Network" > "Bind to IP". Then, make sure it is in Default.

bind to ip in obs

4. Adjust Networking Hardware

When using the outdated network driver, this issue will happen as well. You can update the network driver to make sure that there is a stable connection. If you still use the old network drive, the OBS dropping frames problem will happen as well. To update it, you can do it manually and automatically.

5. Contact ISP or Require Support

If the above solution cannot help fix dropped frames in OBS, then you can go to the official website to look for the particular solution for your situation.

Go to https://obsproject.com/help and look for the related help on the website.

To know the best settings for OBS streaming, follow the below post.

related articles

What are the best OBS settings for streaming?

OBS is a professional and advanced streaming service. This post introduces the best streaming settings for OBS.

Bonus Tips: Best OBS Alternative to Record Streaming Video

Believe that you can find one method to fix dropped frames in OBS. However, if you still think it's hard to fix the issue and look for an alternative tool to OBS, one recording software named EaseUS RecExperts is advised.

As a streaming video recorder, EaseUS RecExperts is able to record streaming video with audio like external and system sound. Here, you need to notice its functional ability is to capture app sound from your streaming platform. Even on Mac, you can use it to capture the internal sound as well.

Key Features:

Now, download this best alternative to OBS and start recording streaming videos!

Step 1. Launch EaseUS RecExperts on your computer. The first option, "Full Screen", can help you capture everything on your screen. If you play the streaming video in full-screen mode, this is suitable for you.

main interface

Step 2. If you play the streaming video in a window, it would be better to select the "Region" option to record only the specific area.

Set the area of the recording screen

Step 3. Ensure that you are in "Region" mode. Then, click on the button in the bottom right-hand corner to select a suitable sound source and adjust the volume. After that, click on the "REC" button to start recording.

select recording area and audio

Step 4. There will be a floating toolbar on your screen when you are recording the video. The two buttons on it can help you pause or stop the recording.

Record streaming video

Step 5. If you click on the red stop button, the recording will be ended, and the captured video will be saved on your computer. When the built-in media player pops up, you can view the recording and use tools to trim it, extract audio from it, or add an opening and ending part.

Record streaming video on Windows 10

FAQs About OBS Dropped Frames

Some related issues are listed here. Look at them to know how to fix dropped frames in Streamlabs OBS.

1. What causes dropped frames when streaming?

It can be caused by an unstable network connection. Also, an unsuitable bitrate in the streaming service can also cause the dropped frames in OBS. If you want to know how to fix the issue, look at the above part.

2. How do I fix my bitrate on OBS?

There are 2 ways to fix the bitrate in OBS. First of all, hit "Settings" > "Output" > "Video bitrate". Then, change it as you like. The second way is that you can click "Advanced" > "Network" > "Enable network optimization". It will optimize the bitrate when working.
