NTFS file system manages - NTFS file system DBR
DBR of NTFS file system
The effect of boot-sector of NTFS is the same as that of FAT16 and FAT32: MBR boots to DBR of active partition, then DBR boots operating system; for Windows NT/2000/XP/2003, DBR calls unfold NTLDR, and then NTLDR calls in system kernel.

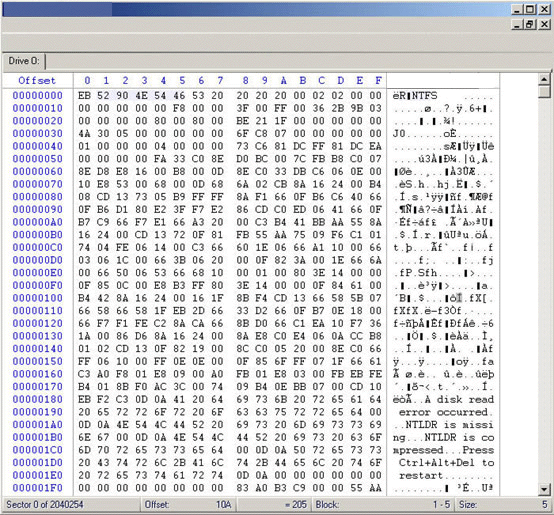

DBR of NTFS

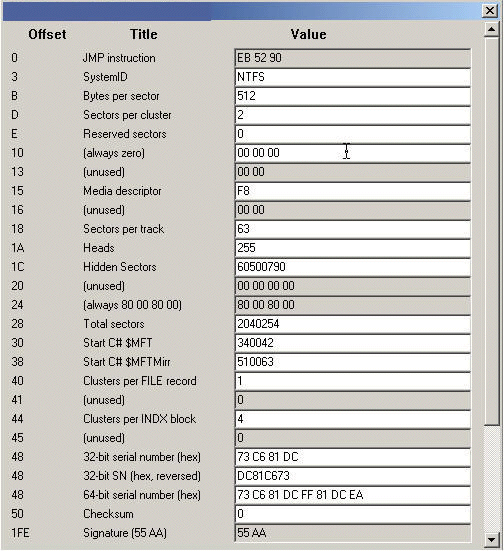

BPB parameter table
Byte offset | Length | Common range | note |
0x0b | bit | 0x0002 | number of bytes in each sector |
0x0d | byte | 0x08 | number of sectors in each cluster |
0x0e | bit | 0x000 | reserved sector |
0x10 | 3byte | 0x000000 | always 0 |
0x13 | bit | 0x0000 | free NTFS, 0 |
0x15 | byte | 0xf8 | medium description |
0x16 | bit | 0x0000 | always 0 |
0x18 | bit | 0x3f00 | number of sectors in each track |
0x1a | bit | 0xff00 | number of heads |
0x1c | Double bit | 0x3f000000 | hidden sector |
0x20 | Double bit | 0x00000000 | free NTFS, 0 |
0x24 | Double bit | 0x80008000 | free NTFS, 0 |
0x28 | 8byte | 0x4af57f0000000000 | total number of sectors |
0x30 | 8byte | 0x0400000000000000 | logic start cluster number of $MFT |
0x38 | 8byte | 0x54ff070000000000 | logic start cluster number of $MFTMirr |
0x40 | Double bit | 0xf6000000 | cluster record number of each MFT |
0x44 | Double bit | 0x01000000 | number of index cluster |
0x48 | 8byte | 0x14a51b74c91b741c | volume lable |
0x50 | Double bit | 0x00000000 | checks the sum |
In NTFS volume, there is an extended BPB formed by data fields that follow the BPB. Data in these fields enables NTLDR to find master file table $MFT in starting process. In the NTFS volume, $MFT isn't placed in a pre-definition sector, which is different from that in FAT16 volume and FAT32 volume. So if there is some bad sectors in normal position of MFT, we can move the $MFT to another place. But, if the data is destroyed, the position of $MFT cannot be found out; then Windows 2000 will consider this volume as unformatted. Therefore, if a NTFS volume prompt unformatted, it is possible that $MFT is not destroyed. And it may reconstruct BPB according to the meaning of each fields of BPB.
